Description

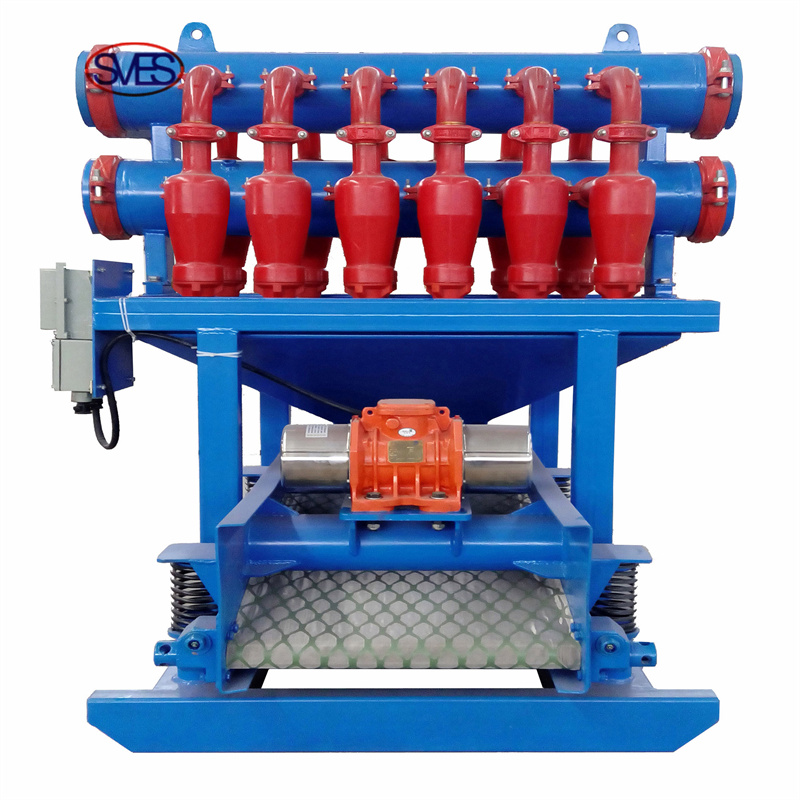

Desander
LCS series desander is the second solids control system in well drilling, the general cones are8″, 10″, and 12″, mainly separate 47~76μm particle out. According to customers’ treating capacity requirements, choose use how many cones.
| Model | LCS250×2 | LCS300×2 |
| Cone size | 250mm/10″ | 300mm/12″ |
| Capacity | ≤240m³/h / ≤1056GPM | ≤300m³/h / ≤1320GPM |
| Cone number | 1~2 Ea Cones, Specify cones No. when ordering | |
| Matching pump | 37kw / 55kw | 55kw / 75kw |
| Inlet Size | 150mm | 150mm |
| Outlet Size | 200mm | 200mm |
| Separation size | 45-75μm | 45-75μm |
| Pressure | 0.21~0.4Mpa | 0.21~0.4Mpa |
