Hydraulic Elevator Type CDZH
Hydraulic elevator type CDZH has double door design for optimal balance and performance. Changeable bushings allow one elevator frame to handle all pipe size and type requirements.
| Model | Tubing and Casing | Drill Pipe(90°) | |||
| NU | EU | Drill Pipe(18°) | Drill Pipe(90°) | Rated Capacity (short tons) | |
| CDZH-150 | 2. 3/8， 2 7/8， 3 1/2, 4, 4 1/2, 4 3/4 | 2.3/8EU,2. 7/8EU, 3. 1/2EU,4EU,4.1/2EU | 2.3/8EU,2. 7/8EU, 3. 1/2EU,4EU,4.1/2EU, 4 1/2IU | 2.3/8EU,2. 7/8EU, 3. 1/2EU,4EU,4IU,4.1/2EU, 4 1/2IU | 150 |
| CDZH-250/350 | 2. 3/8， 2 7/8， 3 1/2, 4, 4 1/2 Tubing, 4 1/2 casing ,5, 5 1/2,6,6 5/8,7, 7 5/8 | 2.3/8EU,2. 7/8EU, 3. 1/2EU,4EU,4.1/2EU | 2.3/8EU,2. 7/8EU, 3. 1/2EU,4EU,4IU4.1/2EU，4 1/2IU,5IEU 5 1/2 IEU | 2. 7/8EU, 3. 1/2EU,4EU,4IU4.1/2EU，4 1/2IU,5IEU 5 1/2 IEU | 250/350 |
| CDZH-500 I /750 | 2. 3/8， 2 7/8， 3 1/2, 4, 4 1/2 Tubing, 4 1/2 casing ,5, 5 1/2,6,6 5/8,7, 7 5/8,8 5/8,9 5/8 | 2.3/8EU,2. 7/8EU, 3. 1/2EU,4EU,4.1/2EU | 2.3/8EU,2. 7/8EU, 3. 1/2EU,4EU,4IU4.1/2EU，4 1/2IU,5IEU 5 1/2 IEU,5 7/8IEU, 6 5/8IEU | 2. 7/8EU, 3. 1/2EU,4EU,4IU4.1/2EU，4 1/2IU,5IEU 5 1/2 IEU | 500/750 |
| CDZH-500 II | 9.5/8、9.7/8、10.3/4、11.3/4、12 7/B、13.3/8、13.5/8、14、16、18、18.5/8、20 | 500 | |||
Air operated elevators are conventional elevators to which power actuation has been added. This feature permits remote opening and closing of the elevators.
| Model | Tubing and Casing | Drill Pipe | Drill Collar | Rated Capacity （short tons） | ||
| NU | EU | 18° | 90° | |||
| DDZ -150 Bushing | 2. 3/8， 2 7/8， 3 1/2, 4, 4 1/2Tubing, 4 1/2Casing, 4 3/4，5 | 2.3/8EU,2. 7/8EU, 3. 1/2EU,4EU,4.1/2EU | 2.3/8EU,2. 7/8EU, 3. 1/2EU,4EU,4IU,4.1/2EU, 4 1/2IU,4 1/2IEU, 5IEU | 2. 7/8EU, 3. 1/2EU,4EU,4IU,4.1/2EU，4 1/2IU,4 1/2IEU,5IEU 5 1/2 IEU | 3. 1/8, 3 1/2,4 1/8,4 3/4, 5, 5 1/4 | 150 |
| Model | Drill Pipe(18°) | Rated Capacity
(short tons) |
|||
| DDZ -350 | 2. 3/8EU、2. 7/8EU.3. 1/2,EU、4 I U. 4EU、4 1/2IU，4. 1/2 IEU 、5IEU，5. 1/2IEU. 5. 7/8 IEU | 350 | |||
| DDZ -350 (Bush i ng ) |
2. 3/8EU、2. 7/8EU.3. 1/2,EU、4 I U. 4EU、4 1/2IU，4. 1/2 IEU 、5IEU，5. 1/2IEU. 5. 7/9 IEU | 350 | |||
| DDZ -500 | 4 I U. 4EU、4 1/2IU，4. 1/2 IEU 、4 1/2IU，5IEU，5. 1/2IEU. 5. 7/8 IEU， 6 5/8IEU | 500 | |||
| DDZ D-750 | 3 1/2EU，4 I U. 4EU、4 1/2IU，4. 1/2 IEU 、4 1/2IU，5IEU，5. 1/2IEU. 5. 7/8 IEU， 6 5/8IEU | 750 | |||
| (Bush i ng) | |||||
| TA-150 | Casing | Drill Collar | 150 | ||
| 4.1/2、4.3/4、5、5.1/2、5.3/4、6，6.5/8、7、7.5/8、7.3/4、8. 5/8 | 4.1/8、4.3/4、5、5.1/4、5. 1/25.3/4、6、6.1/4、6.1/2、6.3/4、7 | ||||
| Drill Collar 7. 1/4、7. 1/2， 7 3/4,8,8 1/4,8 1/2 | Rated Capacity (short tons) | ||||
| HYC-200 Slip type elevator | Applicable pipe size | Slip Size | Inserts | ||
| P/N | Qty | 200 | |||
| 3. 1/2 | 4. 1/2 | 24779 | 24 | ||
| 4 | 4. 1/2 | 24781 | 24 | ||
| 4. 1/2 | 4. 1/2 | 16408 | 24 | ||
| 5 | 5. 1/2 | 24783 | 36 | ||
| 5. 1/2 | 5. 1/2 | 16407 | 36 | ||
| 6. 5/8 | 7 | 24784 | 48 | ||
| 7 | 7 | 16407 | 48 | ||
| 7. 5/8 | 7. 5/8 | 70010 | 48 | ||
The SX series side door elevators are hoisting tools for handling casing in oil and gas fields which are esigned and manufactured according to API Spec 8C specification for drilling and production Hoisting Equipment.
| Model | Casing | Rated Capacity(short tons) |
| SX-350 | 9.5/8、9.7/8、10.3/4、11.3/4、12 3/4、12.7/8、13.3/8、13.5/8 | 350 |
| 14、18.5/8、20、22、24、24. 1/2、26、27、28、30、32、36 | ||
| SX-500 | 9.5/8、9.7/8、10.3/4、11.3/4、12.3/4、12.7/8、13.3/8、13.5/8 | 500 |
| 14、 18.5/8、 20、 22、 24、 24.1/2、 26、 27、 28、 30 |
| Model | Size(in) | Rated Capacity(short tons) | |||
| SLX-65 | 3. 1/2 〜14. 1/4 | 65 | |||
| SLX-100 | 2. 3/8—5. 3/4 | 100 | |||
| SLX-150 | 4. 1/2 〜16 | 150 | |||
| SLX-250 | 4. 1/2 〜30 | 250 | |||
| SLX-350 | 4. 1/2 〜30 | 350 | |||
| Model | Tubing and Casing | Drill Pipe(90°) | Rated Capacity (short tons) | ||
| NU | EU | ||||
| SLX□-载荷 capacity | 2. 3/8 | 2.3/8EU | 2.3/8EU | 100 | |
| 2. 7/8 | 2.7/8EU | 2.7/8EU | |||
| 3. 1/2 | 3.1/2EU | 3. 1/2EU | 65、 100 | ||
| 4 | 4EU | 4IU | |||
| 4. 1/2 | 4.1/2EU | 4EU、4. 1/2 EU、4. 1/2 IEU | 65、 100
150、 250、 350 |
||
| 4. 3/4 | /- | 4.1/2EU、5IEU | |||
| 5 | / | 5. 1/2 IEU | |||
| 5. 1/2、5. 3/4 | / | / | |||
| . 6、6.5/8、7、7.5/8、7.3/4、8.5/8、9、9. 5/8
casing 9. 7/8、10. 3/4、11.3/4、12. 7/8、13.3/8、13.5/8、14 |
65、 150
250、 350 |
||||
| Casing 16 | 150、 250、 350 | ||||
| 18.5/8、20、21. 1/2、22 Tubing and Casing 24、24.1/2、26、27、28、30 | 250、 350 | ||||
Y-type slip type elevators are necessary tools for gripping and hoisting tubing during tripping in/out of drilling and workover operations, and especially are suitable for hoisting tubing with integral joint. The elevators are designed and manufactured in accordance with API Spec 8C Specification for Drilling and Production Hoisting Equipment.
Through installing manual or powered device on the basis of Y series elevator, Y series self-locking tubing elevators realize slips floating or pressing in elevators manually or automatically. The products are designed and manufactured according to GB/T 19190 and API Spec 8C Specification for Drilling and Production Hoisting Equipment.
The CD series side door elevators are hoisting tools for handling drill pipe, casing, tubing and drill collar in oil and gas fields. The elevators are designed and manufactured in accordance with API Spec 8C Specification for drilling and production hoisting equipment.
| Model | Size（Inch） | Rated Capacity (short tons) |
||
| CD-75 | 2. 3/8—4. 1/2 | 75 | ||
| CD-150 | 2. 3/8 〜20 | 150 | ||
| CD-200 | 2. 3/8 〜20 | 200 | ||
| CD-250 | 2. 3/8〜20 | 250 | ||
| CD-350 | 4. 1/2 〜20 | 350 | ||
| CD-500 | 4. 1/2 〜20 | 500 | ||
| CD-750 | 4. 1/2 〜20 | 750 | ||
| CD-all capacity | Tubing | Drill Pipes | 75、 100 150、 250 | |
| NU | EU | |||
| 2. 3/8 | 2.3/8EU | 2.3/8EU | ||
| 2. 7/8 | 2. 7/8EU | 2. 7/8EU | ||
| 3. 1/2 | 3. 1/2EU | 3. 1/2EU | ||
| 4 | 4EU | 4IU | ||
| 4. 1/2 | 4. 1/2EU | 4EU、4. 1/2EU、4. 1/2 IEU | ||
| 4. 3/4 | / | 4.1/2EU、 5IEU | ||
| 5 | / | 5. 1/2 IEU | ||
| Casing：5.1/2、5.3/4、6、6.5/8、7、7.5/8、7.3/4、8.5/8、9、9.5/8、9.7/8 | 150、 200、 250 | |||
| Casing 10.3/4、11.3/4、12.7/8、13.3/8、13.5/8、14、16、20 | 350、 500、 750 | |||
Single-Joint elevators are mainly used for gripping and hoisting single-joint tubing with taper pipe Joint, casing and drill pipe. The elevators are designed and manufactured in accordance with API Spec 8C Specification for Drilling and Production Hoisting Equipment.
| SJ Single Joint | |||
| Model | Size (in) | Rated Capacity(short tons) | |
| SJ-5 | Tubing and Casing(NU) | 2. 3/8〜5 | 5 |
| Tubing(EU) | 2. 3/8EU〜4. 1/2EU | ||
| Drill Pipe | 2. 3/8EU〜5. 1/2IEU | ||
| Casing | 5. 1/2 〜24. 1/2 | ||
| SJD-8 | Casing | 26、 27、 28、 30、 32、 36 | 8 |
| SJX Single Joint Elevator | |||
| Model | Size (i n) | Rated Capacity(short tons) | |
| SJX-5 | Tubing and Casing(NU) | 2. 3/8-4. 1/2、4. 1/2-7 | 5 |
| 7-10、 10-14 | |||
| Tubing(EU) | 2. 3/8 EU〜4. 1/2 EU | ||
| SP Single Joint Elevator | |||
| Model | SPn/18° -5 | SPn/12° -5 | SPQ/5O -5 |
| Drill Pipe(18°) | 2. 3/8、2. 7/8 | / | / |
| 3. 1/2、4、4. 1/2 | |||
| 5、5.1/2、5.7/8、6.5/8 | |||
| Tubing(12°) | / | 2. 3/8EU> 2. 7/8EU | / |
| 3. 1/2EU、4EU、4. 1/2EU | |||
| Tubing and Casing(5°) | / | / | 2. 3/8EU、2. 7/8EU、3. 1/2EU 4EU、4.1/2EU、2.3/8 |
| 2 7/8、3.1/2、4、4.1/2、5 | |||
| 5. 1/2 6. 5/8、7、7. 5/8 7.3/4、10. 3/4 | |||
| Rated Capacity(short tons) | 5 | 5 | 5 |
TA center latch elevator can be widely used for tubing hoisting during petroleum and natural gas drilling and workover operations. The tubing elevators are designed and manufactured in accordance API Spec 8C Specification for Drilling and Production Hoisting Equipment.
| Model | Applicable pipe size | Rated load(short tons) | |
| NU | EU | ||
| TA-35 | 1.05 | 1.050 EU | 35 |
| 1.315 | 1.315 EU | ||
| 1. 660 | 1.660 EU | ||
| 1. 900 | 1.900EU | ||
| 2. 3/8 | 2. 3/8 EU | ||
| 2. 7/8 | 2. 7/8 EU | ||
| TA-65 | 1. 660 | 1.660 EU | 65 |
| 1. 900 | 1.900 EU | ||
| 2. 3/8 | 2. 3/8 EU | ||
| 2. 7/8 | 2. 7/8 EU | ||
| TAD-100 | 1.9 | 1.900 EU | 100 |
| 2. 3/8 | 2. 3/8 EU | ||
| 2. 7/8 | 2. 7/8 EU | ||
| 3 | 3 EU | ||
| 3. 1/2 | 3. 1/2 EU | ||
| 4 | 4 EU | ||
| 4. 1/2 | 4. 1/2 EU | ||
| 5 | / | ||
| Model | Applicable pipe size | Rated load(short tons) | |
| NU | EU | ||
| DDD-150 | 2.3/8, 2 7/8,3 1/2,4, 4 1/2, 5, 5 1/2″ | 2. 3/8 EU,2 7/8EU, 3 1/2EU,4EU, 4 1/2EU, 5EU,5 1/2EU | 150 |
SE series casing elevator/spiders are mechanized tools with air operating. They can handle casings up to 24.1/2 inch

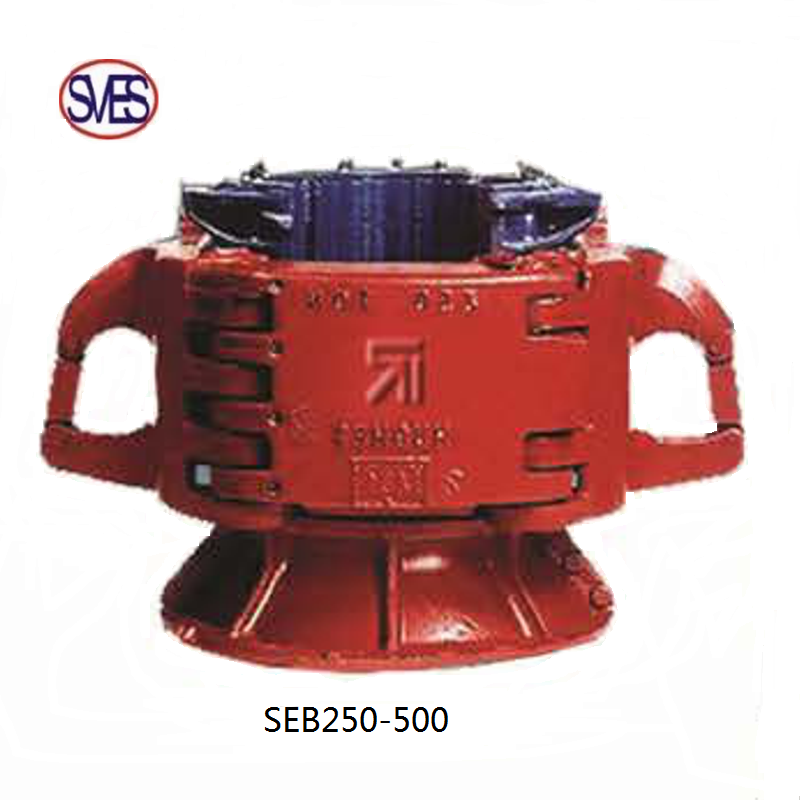

SEB series casing elevator/spiders are mechanized triplet tools with air operating. They can handle casings up to 13.3/8 inch. They are easy to operate and dependable enough. Also they can reduce workload. They are designed and manufactured according to API Spec 8C Specification for drilling and production hoisting equipment.
| Size Range (in) | Rated Capacity (short tons) | Working Pressure (Mpa) | |
| Model | |||
| SE150 | 2. 3/8〜5. 1/2 | 150 | 0. 6〜0. 8 |
| SE350C14) | 4~14 | 350 | 0. 6〜0. 8 |
| SE350 (20) | 16 〜20 | 350 | 0. 6〜0. 8 |
| SE500C14) | 2. 3/8〜14 | 500 | 0. 6〜0. 8 |
| SE500(24. 1/2) | 16 — 24. 1/2 | 500 | 0. 6〜0. 8 |
| SE750C14) | 6. 5/8 〜14 | 750 | 0. 6 〜0. 8 |
| SE750(24. 1/2) | 16 — 24. 1/2 | 750 | 0. 6〜0. 8 |
| SEB250 | 2. 3/8〜7. 5/8 | 250 | 0. 6〜0. 8 |
| SEB350 | 4. 1/2〜9. 5/8 | 350 | 0. 6〜0. 8 |
| SEB500 | 4. 1/2〜13. 3/8 | 500 | 0. 6〜0. 8 |
