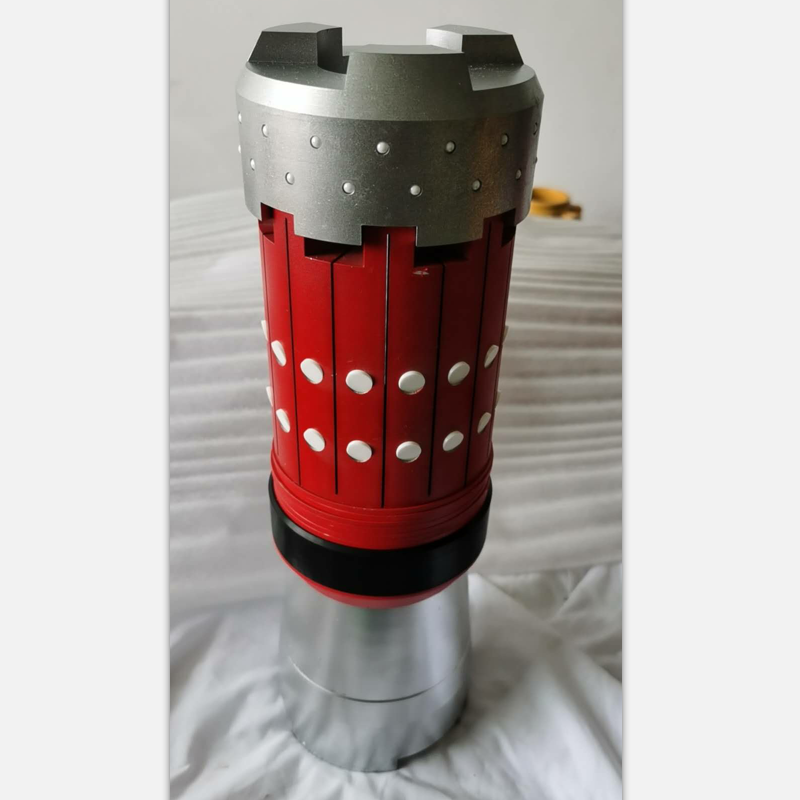

Dissolvable Frac Plug
Features & benefits
⚫ Full 10,000psi(70Mpa) differential pressure rating between stages;
⚫ Big bore ID to facilitate immediate flowback and well clean up, full bore ID is achieved after complete dissolution;
⚫ Unique shear ring design eliminating normal steel shear screws for releasing;
⚫ Eliminate the risk and cost associated with conventional plug removal;
⚫ Simplistic three piece design and compact construction;
⚫ Integrated anti-preset feature;
⚫ Low dissolvable rubber content;
⚫ Easy to operate, can be run with wireline or tubing string;
⚫ Should drilling out is needed in special circumstance, the Afrac Big Bore Dissolvable Plug has good drillability, can be easily drilled out by milling tool.
Specification
| Casing Size | Weight | Casing ID | Max OD | Min ID | Length | Pressure | Temperature |
| in. (mm) | Lb/ft | in. (mm) | in. (mm) | in. (mm) | in. (mm) | Psi (Mpa) | Deg F (Deg C) |
|
5 1/2 (139.7) |
17-20 |
4.778~4.892 (121.36~124.26) | 4.409
(112) |
2.480
(63) |
14.72
(374) |
10,000
(70) |
104~248 (40-120) |
|
20-23 |
4.670~4.778 (118.62~121.36) | 4.331
(110) |
2.480
(63) |
14.72
(374) |
10,000
(70) |
104~248 (40-120) | |
|
23-26.8 |
4.500~4.670 (114.3~118.62) | 4.134
(105) |
1.811
(46) |
14.72
(374) |
10,000
(70) |
104~248 (40-120) | |
| 5
(127) |
21.4 |
4.126
(104.8) |
3.752
(95.3) |
1.811
(46) |
14.09
(358) |
10,000
(70) |
104~248 (40-120) |
|
4 1/2 (114.3) |
11.6 |
4
(101.6) |
3.752
(95.3) |
1.811
(46) |
14.09
(358) |
10,000
(70) |
104~248 (40-120) |
|
13.5 |
3.920
(99.56) |
3.661
(93) |
1.811
(46) |
13.98
(355) |
10,000
(70) |
104~248 (40-120) | |
|
15.1 |
3.826
(97.18) |
3.583
(91) |
1.811
(46) |
13.98
(355) |
10,000
(70) |
104~248 (40-120) | |
| 3 1/2
(88.9) |
9.2-10.2 |
2.922~2.992 (74.22~76) | 2.750
(69.85) |
0.945
(24) |
13.78
(350) |
10,000
(70) |
104~248 (40-120) |
Dissolving rate
| Dissolving Rate (day) | |||||
| Low salinity material | High salinity material | ||||
| Temperature℃ | Fresh Water | 0.05% KCL | 1%KCL | 3%KCL | 8%KCL |
| 25 | 60 | 15 | 15.1 | 11.4 | 10.5 |
| 40 | 16 | 6 | 8.4 | 7.6 | 7.3 |
| 55 | 13 | 4 | 7.9 | 7.2 | 7.1 |
| 70 | 9 | 2.5 | 6.5 | 5.7 | 5.4 |
| 85 | 4 | 2 | 4.7 | 3.8 | 3.2 |
