XQ Power tong
*** XQ140/20 Hydraulic Tubing Power tong
| Applicable pipe size | mm | 42 | 48 | 52 | 60 | 73 | 89 | 102 | 114 | 127 | 140 |
| in | 1. 66 | 1.9 | 2. 1/16 | 2. 3/8 | 2. 7/8 | 3. 1/2 | 4 | 4. 1/2 | 5 | 5. 1/2 | |
| Max. working pressure | 16MPa(2321psi) | ||||||||||
| Max. oil supply | 160L/min(42.3g/min) | ||||||||||
| Length | 1150mm(45.3in) | ||||||||||
| Width | 1000mm(39.4in) | ||||||||||
| Height | 1660mm(65.4in) | ||||||||||
| Weight | 840kg(1848lb) | ||||||||||
| Torque Range | |||||||||||
| Max. RPM (rpm) | High 100 | Low 24 | |||||||||
| RPM at 1000PSI | 1400 ft lb | 6000 ft lb | |||||||||
| RPM at 2500PSI | 3500 ft lb | 15000 ft lb | |||||||||
*** XQ140/12Y Hydraulic Power tong
| Applicable pipe size | mm | 60 | 89 | 102 | 114 | 127 | 140 |
| Inch | 2. 3/8 | 3. 1/2 | 4 | 4.1/2 | 5 | 5 1/2 | |
| Max. working pressure | 12MPa(1740psi) | ||||||
| Max. oil supply | 120L/min(31.7g/min) | ||||||
| Max. torque at high gear | 4.2kN m(3098lbf ft) | ||||||
| Max. torque at low gear | 12kN m(8851lbf ft) | ||||||
| Max. RPM at high gear | 72r/min(72r/min) | ||||||
| Max. RPM at low gear | 24r/min | ||||||
| Overall dimensions | 1060mmx618mmx850mm(41.7inx24.3inx33.5in) | ||||||
| Transportation weigh | 520kg(11441b) | ||||||
*** XQ28/1.8Y Power tong
| Applicable pipe size | Sucker rod | mm | 16 | 19 | 22 | 25 | 28 |
| in | 5/8 | 3/4 | 7/8 | 1 | 1. 1/8 | ||
| Applicable pipe size | Tubing | mm | 48-55 | 55-60 | |||
| in | 1.7/8 -2.5/32 | 2.5/32 — 2.3/8 | |||||
| Max. working pressure | 10MPa(1450psi) | ||||||
| Max. oil supply | 65L/min(17.2g/min) | ||||||
| Max. torque at high gear | 0.7kNm(516lbfft) | ||||||
| Max. torque at low gear | 1.8kN m(1328lbf ft) | ||||||
| Max. RPM at high gear | 104r/min | ||||||
| Max. RPM at low gear | 40r/min | ||||||
| Overall dimensions | 543mmx334mmx404mm(21.4inx13inx16in) | ||||||
| Transportation weigh | 95kg(210lb) | ||||||
*** XQ28/2.6Y Hydraulic Power Tong
| Appropriate pipe diameterfSucker rod) | mm | 16 | 19 | 22 | 25 | 28 |
| in | 5/8 | 3/4 | 7/8 | 1 | 1.1/8 | |
| Max. working pressure | 10MPa(1450psi) | |||||
| Max. oil supply | 80L/min(21.1g/min) | |||||
| Max. torque at high gear | 0.8kN m(590lbf ft) | |||||
| Max. torque at low gear | 2.6kNm(1918lbfft) | |||||
| Max. RPM at high gear | 98r/min | |||||
| Max. RPM at low gear | 32r/min | |||||
| Overall dimensions | 670mm><383mmx490mm(26.4inx15inx19.3in) | |||||
| Transportation weigh | 100kg(220lb) | |||||

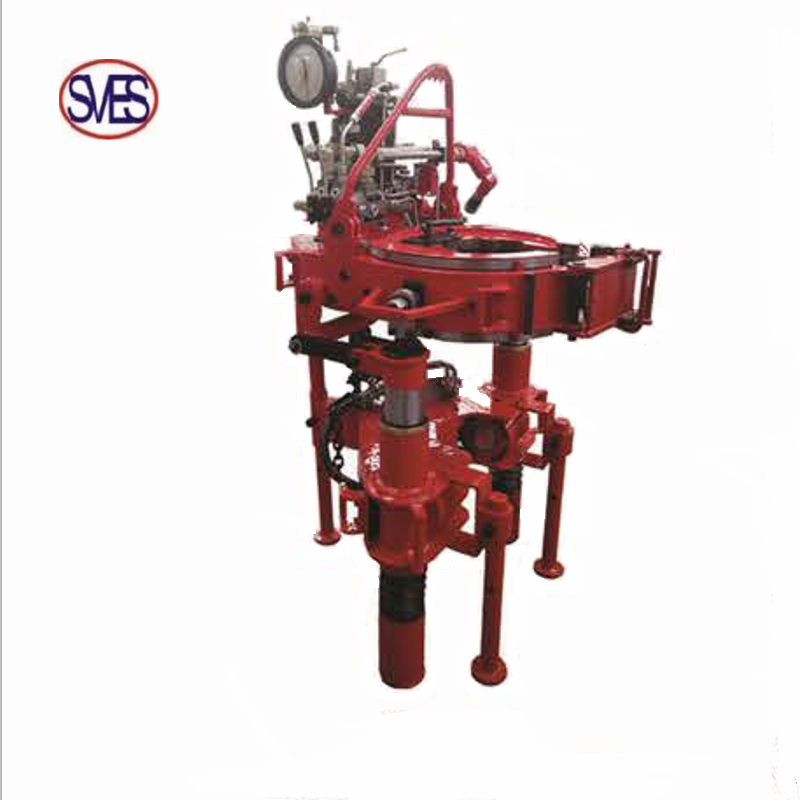

Power casing tongs are hydraulic tools used for making up and breaking out casings during casing running operations. The tongs have a compact, safe and reliable structure which could help reducing labor intensity and improving the work efficiency. The power casing tongs are designed and manufactured according to requirements of API 8C Power tongs and manual tongs for drilling and workover operations.
*** TQ178/16 Power Casing Tong
*** TQ340/35 Power Casing Tong
*** TQ340/35Y Power Casing Tong
*** TQH340/50 Power Casing Tong
*** TQH340/70 Power Casing Tong
| Type | Size Range (in) | Rated Torque (kN • m) |
| TQ178/16 | 3. 1/2〜7 (3. 1/2> 4、4. 1/2、5、5. 1/2、7) | 17. 5 |
| TQ340/35 | 4〜13. 3/8 (4、4.1/2、5、5.1/2、6.5/8、7、7.5/8 8.5/8、9.5/8、10.3/4、12.3/4、13.3/8) | 35 |
| TQ340/35Y | 4〜13. 3/8 (4、4.1/2、5、5.1/2、6. 5/8> 7、7.5/8 8.5/8、9.5/8、10.3/4、12.3/4、13.3/8) | 35 |
| T0H340/50 | 4〜13. 3/8 (4、4.1/2、5、5.1/2、6.5/8、7、7.5/8 8.5/8、9.5/8、10.3/4、12.3/4、13.3/8) | 50 |
| TQ508/70 | 9. 5/8〜20 (9.5/8、13.3/8、16、18.5/8、20) | 70 |
