Description

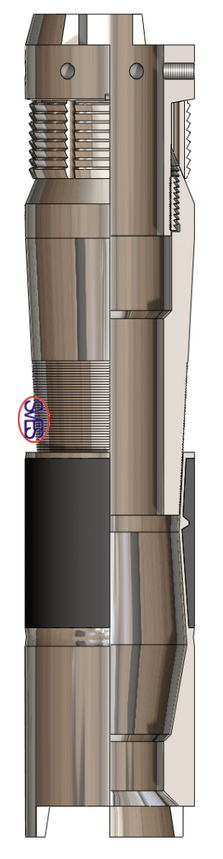

Big Bore Bridge Plug
Specifications
| PN# | Casing OD | Casing Wt | Tool OD | Setting Range | Setting Force | Pressure Psi/MPa |
|
| (in) | (lbs/ft) | (in) | Max.(in) | Min.(in) | (lbs) | ||
| SVLB001 | 5″ | 11.5-15 | 4.055 | 4.408 | 4.56 | 33600-36800 | 10000/70 |
| SVLB002 | 5 1/2″ | 20-23 | 4.331 | 4.67 | 4.778 | ||
Features
· Pressure degree 70MPa(10000psi).Dissolvable ball, can hold higher pressure.
· Compact, small OD. Sets securely in any casing.Can be set with hydraulic setting tool.
· longer running distance in horizontal section. No coiled tubing operations required,
· Slope bottom can prevent the rotation when milling.
· Bigger ID, can product without fraction.
· Standard working temp 150°C (300°F).
Passive Large Bore Bridge Plug
Features
Steel base material, large range tolerance, can accommodate up to ±12% casing deformation;
Ultra-large passability, the maximum diameter can reach to 76mm;
It has strong corrosion resistance and can be setting downhole for a long time.
Compatible with conventional tools such as cable, coiled tubing and production tubing;
| Casing Size
（in） |
Casing ID （mm） |
BP OD（mm） | BP ID （mm） |
Casing Size
（in） |
Pressure （PSI/Mpa） |
Setting Force
（kN） |
| 41/2“ | 99.6 -103.9 | 90 | 35 | 41/2“ | 10000
(70MPa) |
130 |
| 5″ | 108.6 – 115.8 | 98 | 40 | 5″ | 10000
(70MPa) |
130 |
| 5 1/2“ | 118.7 – 124.3 | 110 | 50 | 5 1/2“ | 10000
(70MPa) |
170 |
