Description

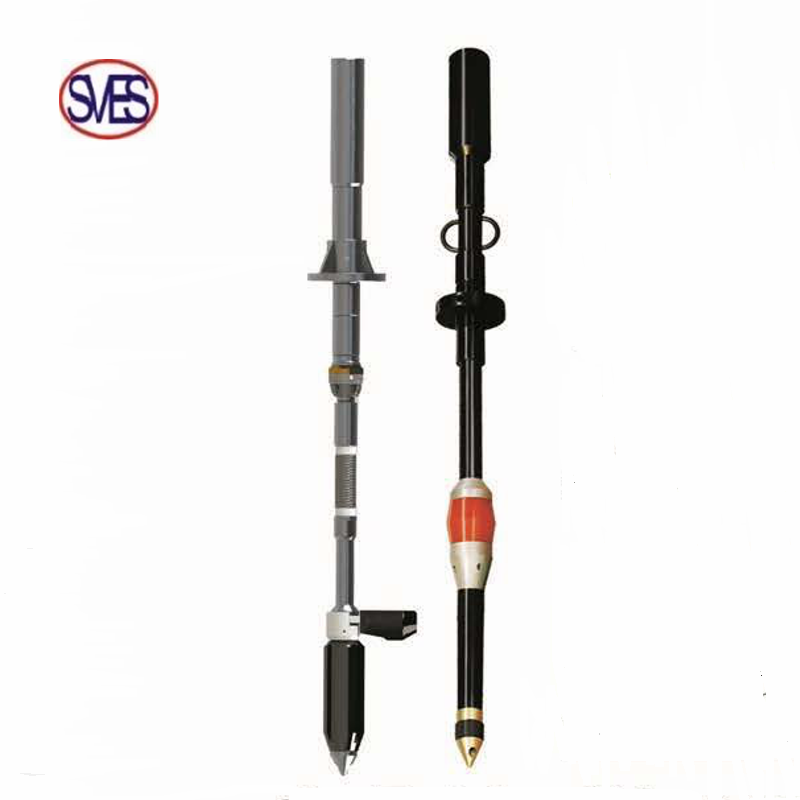

Non-top-drive Fill up and Circulate Tool is a tool used for mud injection and circulation during running casing. The Non-top-drive FAC Tool is designed to both fill the casing with drilling fluid while running it in the hole and to enable quick circulation of the casing string at any time without installation of a casing swage.
| Model | Applicable Pipe Size |
| L-FAC | 7〜20 |
| M-FAC | 5. 1/2 〜7 |
| S-FAC | 4. 1/2 〜5 |
| L-FAC (Non-top-drive) | 7〜14 |
| Casing | Seal Assembly (Mark) | Max.
Pressure |
||||
| Size (in) | Weight (lbm) | Inner Diameter (mm) | Seal
Retainer |
Sealing
Element |
G Rng | |
| 7 | 23-26 | 161.7-159.4 | L-7A | L-7A | L-7A | 3000ps i |
| 29-32 | 157.1-154.8 | L-7B | L-7B | L-7B | ||
| 35-41 | 152. 5-147. 8 | L-7C | L-7C | L-7C | ||
| 7. 5/8 | 33. 7-42. 8 | 171.8-165. 1 | L-7. 5/8A | L-7. 5/8A | L-7. 5/8A | 2500psi |
| 42. 8-47. 1 | 165. 1-161. 9 | L-7. 5/88 | L-7. 5/8B | L-7. 5/8B | ||
| 8. 5/8 | 28-40 | 203. 6-196.2 | L-8. 5/8A | L-8. 5/8A | L-8. 5/8A | 2500psi |
| 40-49 | 196.2-190.8 | L-8. 5/8B | L-8. 5/8B | L-8. 5/8B | ||
| 9. 5/8 | 32. 3-36 | 228. 6-226. 6 | L-9. 5/8C | L-9. 5/8C | L-9. 5/8C | 2000psi |
| 36-47 | 226. 6-220. 5 | L-9. 5/8B | L-9. 5/88 | L-9. 5/8B | ||
| 47-58 | 220. 5-214. 3 | L-9. 5/8A | L-9. 5/8A | L-9. 5/8A | ||
| 9. 7/8 | 62. 8-68. 9 | 219.8-215.6 | L-9. 5/8A | L-9. 5/8A | L-9. 5/8A | 2000psi |
| 10. 3/4 | 51-60. 7 | 250. 2-245. 4 | L-10. 3/4A | L-10. 3/4A | L-10. 3/4A | 1500psi |
| 60. 7-71. 1 | 245. 4-240 | L-10. 3/48 | L-10. 3/4B | L-10. 3/48 | ||
| 11.3/4 | 47-60 | 279. 4-273. 6 | L-11.3/4A | L-11.3/4A | L-11.3/4A | 1500psi |
| 13. 3/8 | 48-61 | 323-317. 9 | L-13. 3/8B | L-13. 3/8B | L-13. 3/88 | 1000psi |
| 68-72 | 315. 3-313. 6 | L-13. 3/8A | L-13. 3/8A | L-13. 3/8A | ||
| 14 | 80-92 | 327. 7-323. 3 | L-14A | L-14A | L-14A | 1000psi |
